JMI Carrying Case Comparison Chart
  Part Number & Equipment-
Specific
Design		 Type of
Equip.		  Picture* of
Inside of Case		 Picture* of
Outside of Case		 Notes This Case Also
Can Be Used For...†

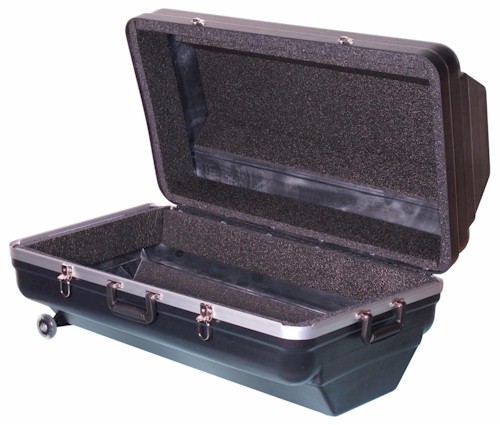

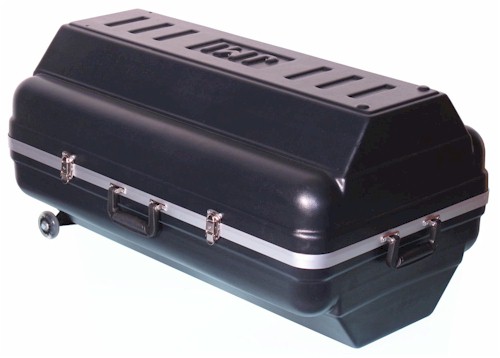

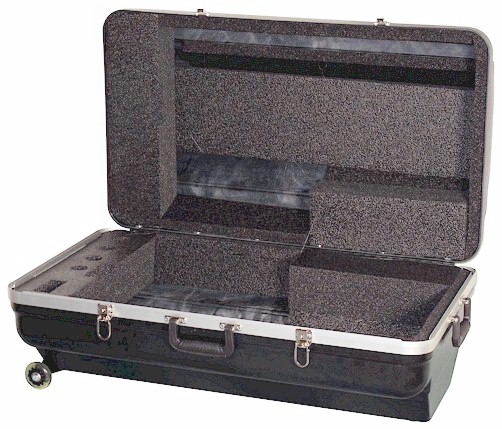

  CASE14OTA

Celestron
 C9¼-S
C9¼-SGT
CG-9¼
CG-11
CG-14
CGE 925
CGE 1100
CGE 1400
CM-1100
CM-1400

 SCT 9¼"
SCT 11"
SCT 14"
German Eq

The foam is configured at the factory for the 9¼" optical tube. You simply pull out precut sections to increase the cavity size to match the 11" or 14" optical tube.  An adapter bracket is included for instant accurate repositioning when attaching the finder scope.

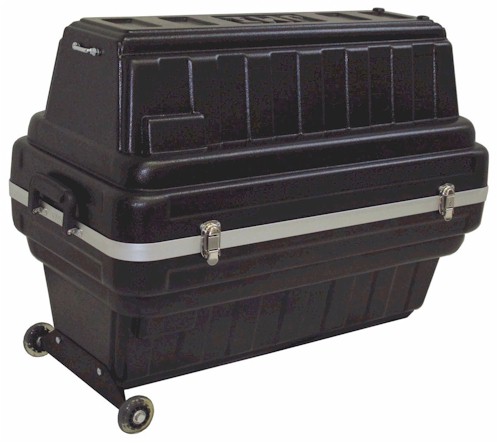

  CASECPC8

Celestron
 CPC 800 GPS
NexStar 8 GPS

SCT 8"
Dual Fork
(Shown with
CPC 800 GPS)

Both the finder scope and hand unit must be removed from the telescope and inserted into protective pouches (included).

NOTE:  An adapter bracket is available for the NexStar 8 GPS.  It gives instant accurate repositioning when attaching the finder scope.

NOTE:  A special (CASECPC8 Only) Large-Wheel Upgrade is available.

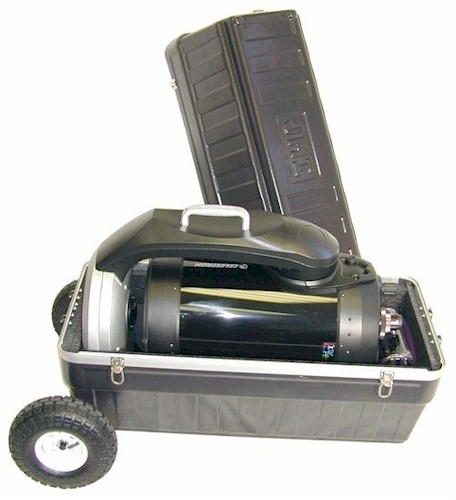

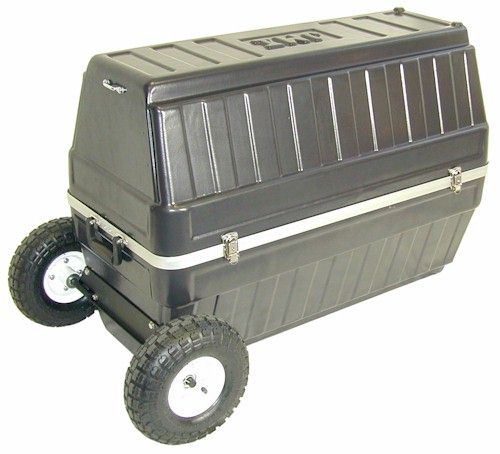

  CASECPC11

Celestron
 CPC 925 GPS
 CPC 1100 GPS
NexStar 9¼ GPS
NexStar 11 GPS

 SCT 9¼"
 SCT 11"
Fork
(Shown with
CPC 1100 GPS)

Both the finder scope and hand unit must be removed from the telescope and inserted into protective pouches (included).

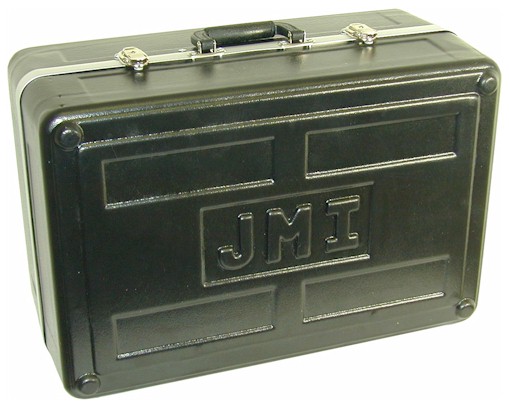

  CASENEX6

Celestron
 NexStar 4 SE
NexStar 5 SE
 NexStar 6 SE

 SCT 4"
SCT 5"
SCT 6"
Single Fork
(Shown with
NexStar 6 SE)

This case comes WITHOUT foam and requires that you use the ORIGINAL PACKAGING foam.

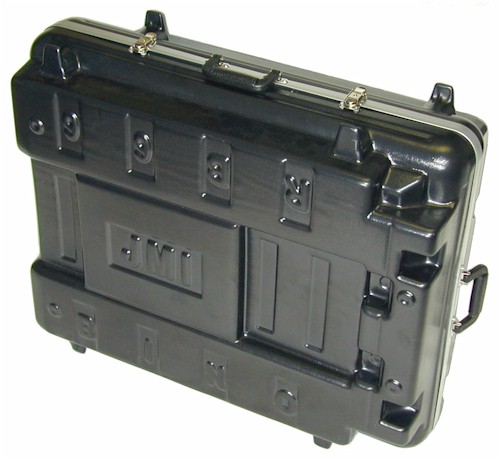

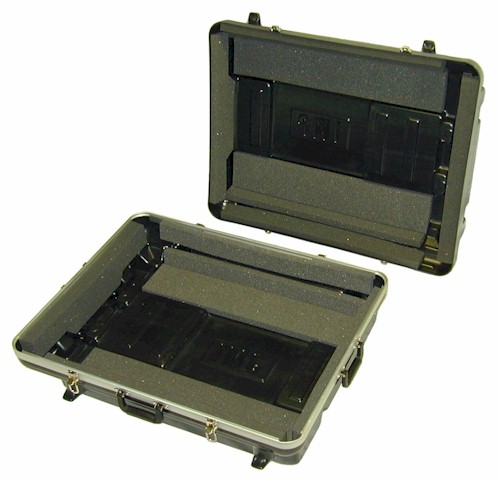

  CASERB66

JMI
 RB-66

 Binocular
Telescope

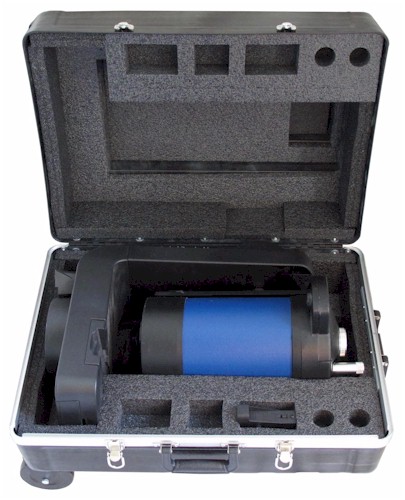

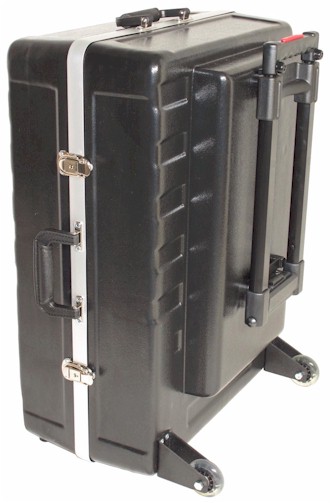

  CASELS6

Meade
 ETX-LS 6"

 ACF/SC 6"
Single Fork

The finder scope must be removed from the telescope and inserted into a vinyl protective pouch (included).

NOTE:  An adapter bracket is included that gives instant accurate repositioning when attaching the finder scope.

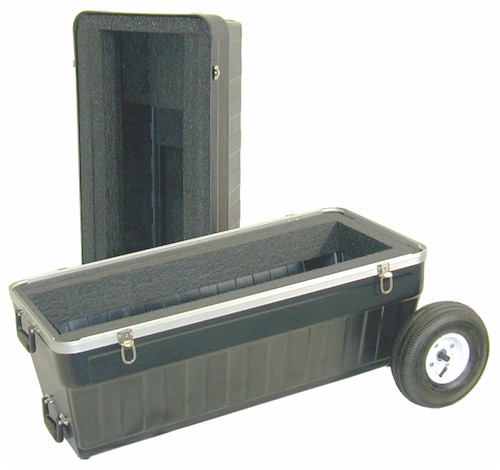

  CASELX7

Meade
 LX200 7"
LX200GPS 7"

 Mak-Cas 7"
 Fork

The finder scope must be removed from the telescope and inserted into a vinyl protective pouch (included).

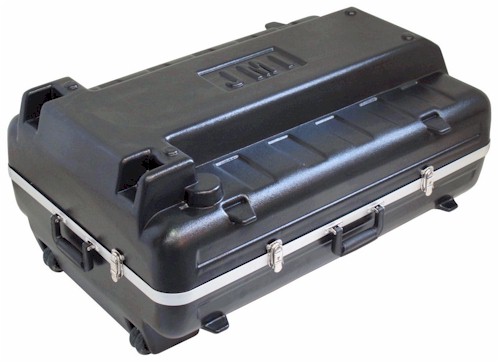

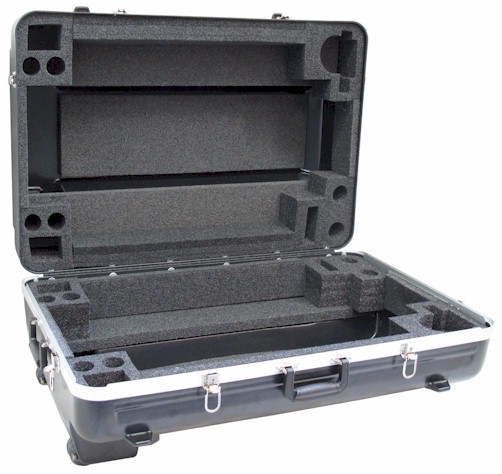

  CASELX10

Meade
 LX50 10"
LX90 10"
LX90-ACF 10"
LX90GPS 10"
LX100 10"
LX200 10"
LX200GPS 10"
LX200R 10"

 SCT 10"
Fork		 Both the finder scope and the microfocuser (GPS version) will need to be removed from the telescope and placed in foam compartments.  Special vinyl covers are provided for the finder scope and rear cell opening.

Meade 2120, 10" LX2 through LX10, Ultima 9-1/4" and LX50

The optical tube of Celestron and Meade 10" German Equatorial SCT telescopes

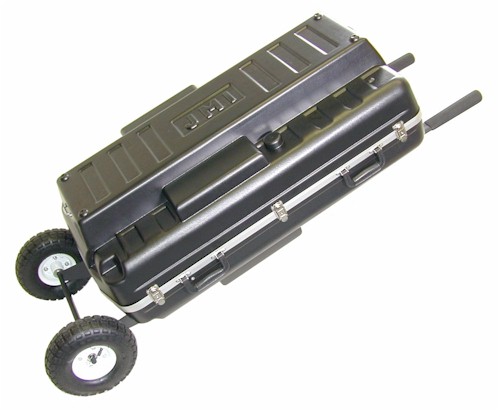

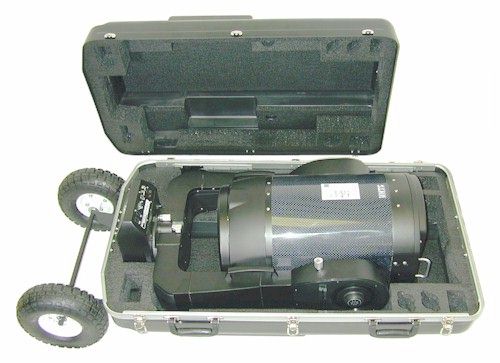

  CASELX12R10

Meade
 LX90-ACF 12"
LX90GPS 12"
LX200 12"
LX200GPS 12"
LX400-ACF 10"
RCX400 10"

 SCT 10"
SCT 12"
Fork
(Shown with
RXC400 10")		 The top of the case is not hinged.  It is removed completely to insert or remove the telescope.  The finder scope must be removed and placed in a protective vinyl cover.

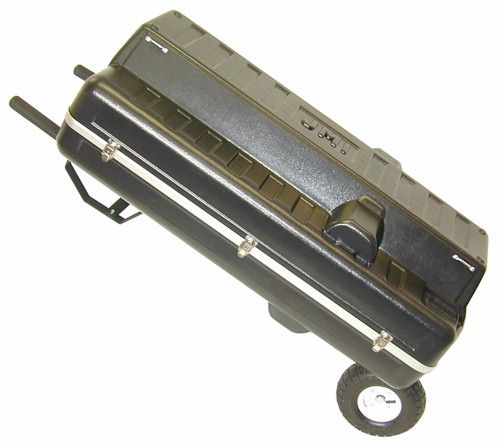

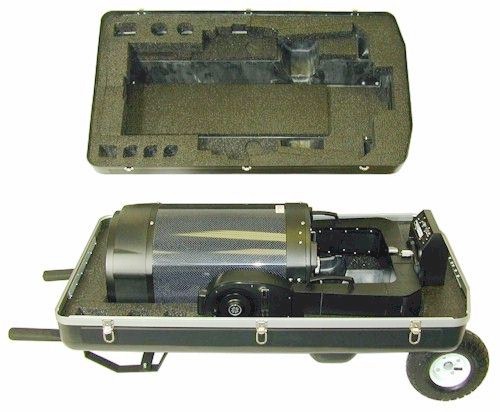

  CASELX14R12

Meade
 LX200GPS 14"
LX400-ACF 12"
RCX400 12"

 SCT 12"
SCT 14"
Fork
(Shown with
RXC400 12")		 The top of the case is not hinged.  It is removed completely to insert or remove the telescope.  The finder scope must be removed and placed in a protective vinyl cover.

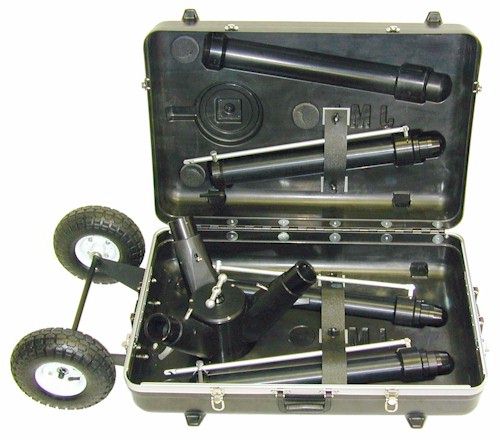

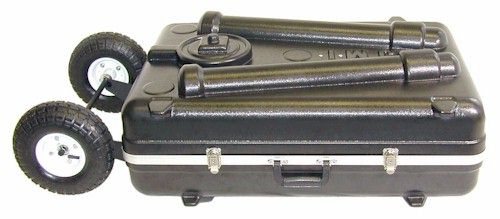

  CASERCXTP

Meade
 LX400-ACF
and RCX400
Tripod
(10" to 14")

 Tripod

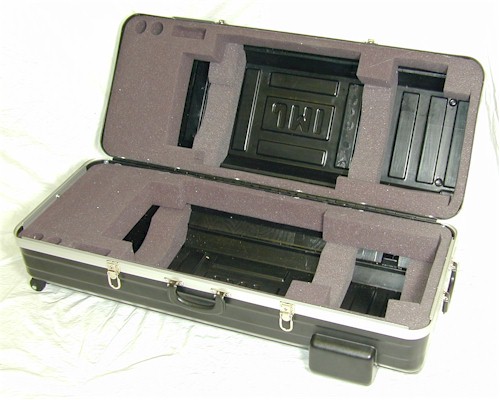

  CASE55OTA

Meade
 LXD55 SN-8
LXD55 SN-10
LXD75 SN-8
LXD75 SN-10

 SN 8"
SN 10"
German Eq		 The foam is configured at the factory for the SN-8. You simply pull out precut sections to increase the cavity size to match the SN-10. Depending on the focuser placement, this case could be used for a Newtonian between 29" and 36.5" in length and from 8" to 12" in diameter.  The case includes extra space for a dovetail mount and mounting rings.
  CASEGEN19

Celestron
 C8-S
C8-SGT
CGE 800
G-8
Great Polaris C8
NexStar 4
NexStar 4GT
NexStar 4SE
NexStar 5
NexStar 5i
NexStar 5 SE
 NexStar 6 SE
Super Polaris C8
Meade
ETX-90 (non-EC)
ETX-90EC
ETX-90PE
ETX-105EC
ETX-105PE
ETX-125EC
ETX-125PE
GEM 2080
LXD55 SC-8
LXD75 SC-8
Other
8" SCT OTA
and more...

 Generic
(Up to 19" Length)

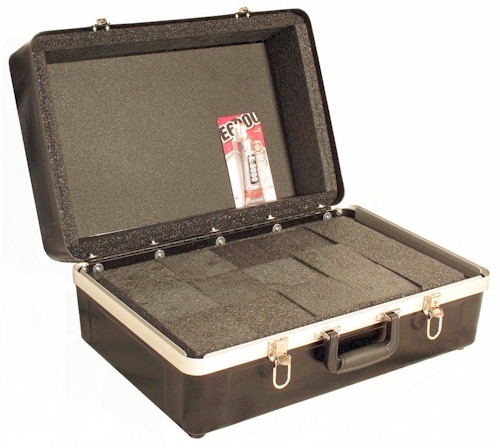

This case comes with flat and block foam pieces (and glue) for configuring to your equipment.

The inside dimensions are 19" length x 11½" width x 9" depth.

 Check the dimensions of your equipment to see if it will fit the inside dimensions of the case (19" x 11½" x 9").

Extra foam pieces are included to configure the inside for your particular equipment dimensions.

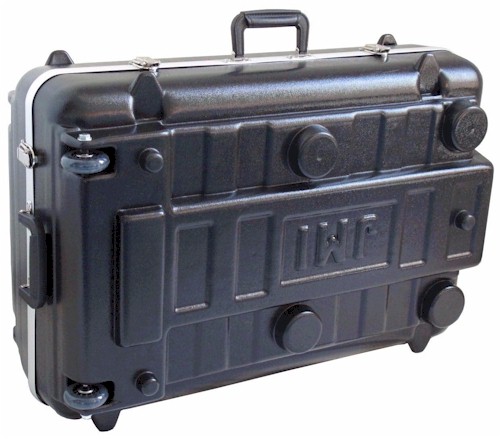

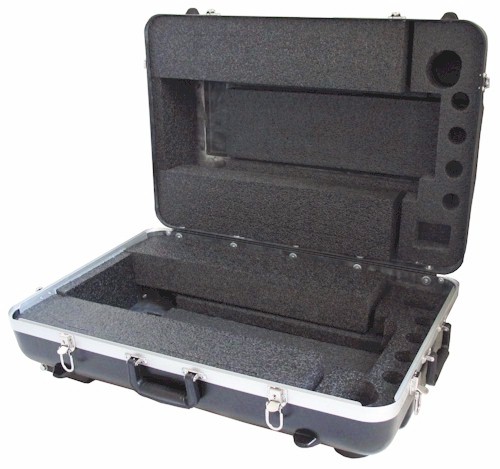

  CASEX8

Celestron
 (single fork arm versions only)
NexStar 8
NexStar 8i
Meade
 LX50 8"
LX90 8"
LX90-ACF 8"
LX90GPS 8"
LX100 8"
LX200 8"
LX200GPS 8"
LX200R 8"

 SCT 8"
Fork		 The foam is configured at the factory for several scopes.  To convert the foam to fit another telescope, simply remove the extra pre-cut foam pieces as explained in the instructions.  The telescope finder must be removed and inserted into a foam compartment (as shown).

Celestron C8, C8+, Celestar 8 Deluxe, Powerstar 8 and Fastar 8

Meade 2080, 8" LX2 through LX10 and Ultima 8

The optical tube of Celestron and Meade 8" German Equatorial SCT or Newtonian telescopes (26" length maximum)

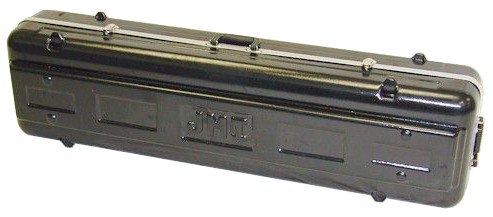

  CASEREFR

Celestron
 C6-R
C6-RGT
CR-150
Meade
127ED
LXD55 AR-5
LXD55 AR-6
LXD75 AR-5
LXD75 AR-6
Synta
Sky-Watcher 150

 5" to 6"
Refractor
(Shown with
LXD55 AR-6)

Holds most 5" and 6" Celstron and Meade refractors.  For the Celestron scopes the diagonal must be detached and inserted in a specially designed space in the case.  The Meade diagonal may be left on.

 Orion 120

See complete inside dimensions with the product description on the Carrying Case Page.

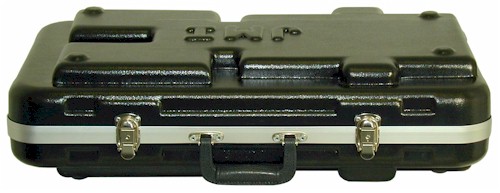

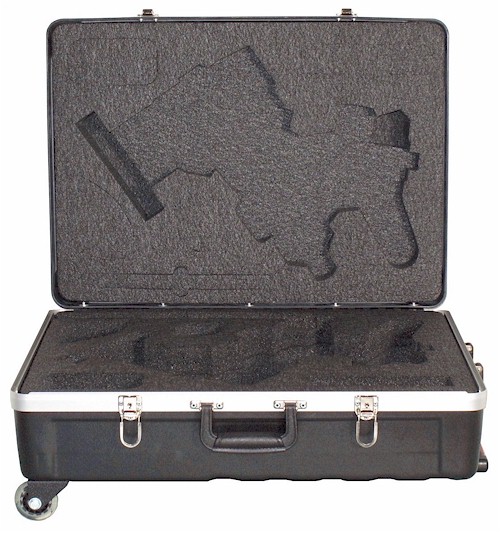

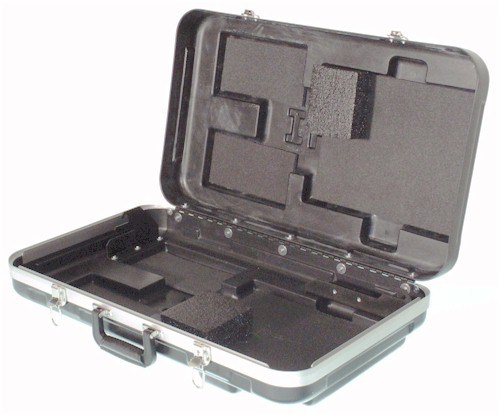

  CASECG5EH

Celestron
 CG-5
Equatorial Head
Meade
LXD55/75 Equatorial Head

 Equatorial
Head		 Brackets hold the Equatorial Head assembly securely in place.
 (The Meade LXD55/75 includes the AR-5, AR-6, SC-8, SN-6, SN-8 and SN-10.)
  CASE3810C

Meade
Std Field Tripod
Generic
Soft Case

 Tripod
Mounts &
Small
Telescopes

Padded soft case.  Includes a padded shoulder strap, handle grip and two zippered compartments for carrying small accessories.

 Fits tripod mounts and telescopes up to a maximum length of 38" and diameter of 10".

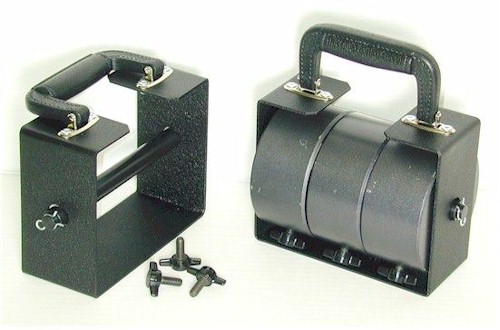

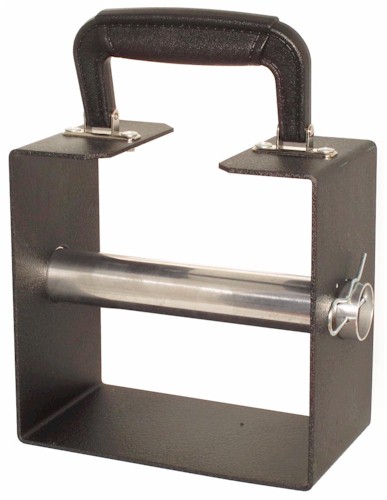

  CASEGCW

Celestron
Meade
Orion
 German Eq Mnt
Counter-
weights

 German Eq
Counter-
weights		   The Counterweight Caddy should work for most German Equatorial  counterweights.

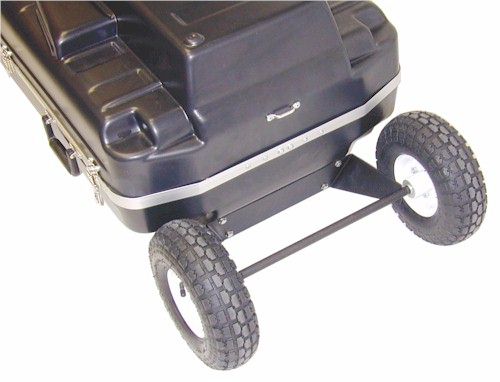

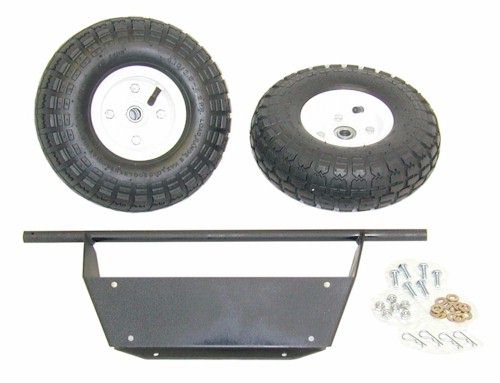

  CASELWUPG

JMI
 Carrying Cases
(Large-Wheel
Upgrade)

 All-Terrain
Wheel
Upgrade

Add large 10" all-terrain pneumatic wheels to your telescope carrying case to improve travel over rough surfaces.

 Only specific models can be upgraded with the large wheels (see list with product description).

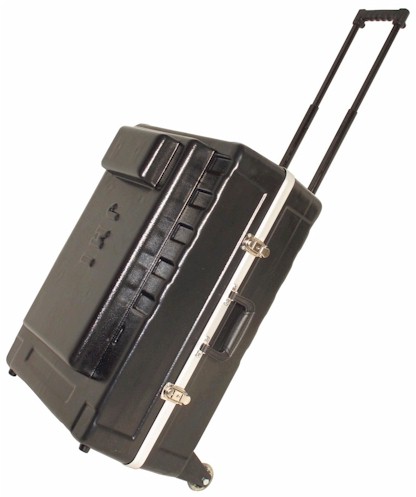

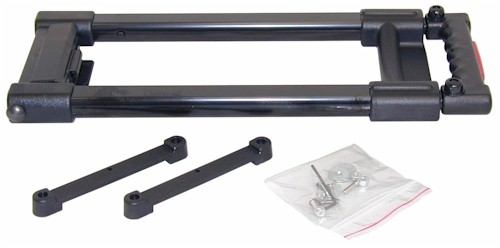

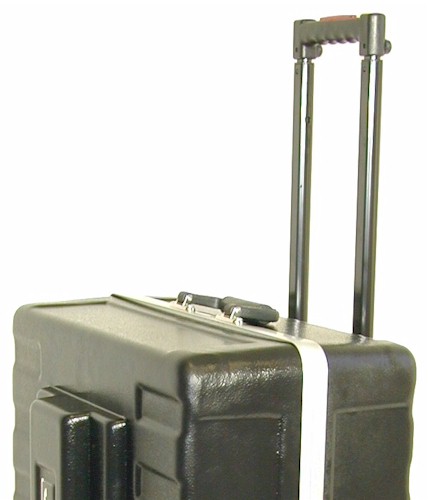

  CASELHUPG

JMI
 Carrying Cases
(Retractable-
Handle
Upgrade)

 Sliding- Handle
Upgrade		 Add luggage-style retractable handle to your telescope carrying case for improved maneuverability. All JMI Cases that include wheels except CASELX12R10 and CASELX14R12 (due to the size and weight of the telescope).

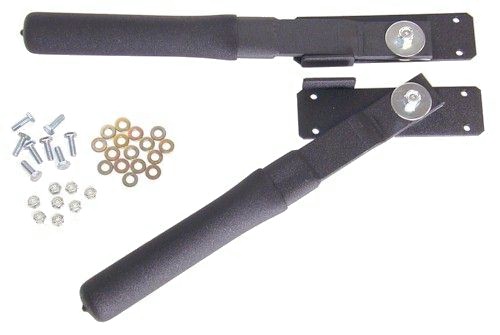

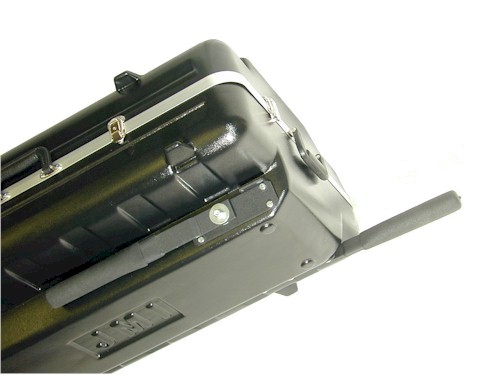

  CASERHUPG

JMI
 Carrying Cases
(Retractable-
Handle
Upgrade)

 Folding- Handle
Upgrade
(One Handlebar Shown Retracted)		 Add wheelbarrow-style folding handles to your telescope carrying case for improved maneuverability. Only specific models can be upgraded with the folding handles (see list with product description).
  Part Number
& Equipment
Specific
Design		 Type of
Equip.		  Picture* of
Inside of Case		 Picture* of
Outside of Case		 Notes This Case Also
Can Be Used For...†

JMI Carrying Case Comparison Chart

* Click on a picture to see a larger version of that picture.  See more pictures on our Carrying Case Page in our JMI Catalog.

†  Our carrying cases are manufactured with exact-fit die-cut foam or brackets to hold specific telescopes as securely as possible.  They can, however, be used for telescopes other than those for which they were designed.  This information is provided to help you make a decision about purchasing a case for other telescopes.  For more specific information, see the note under the complete description for each case on the Carrying Case Page in our JMI Catalog.
